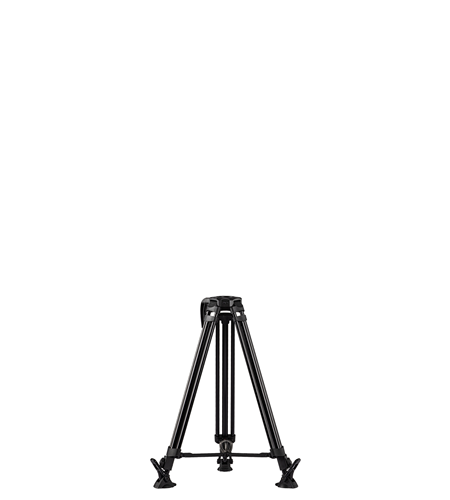

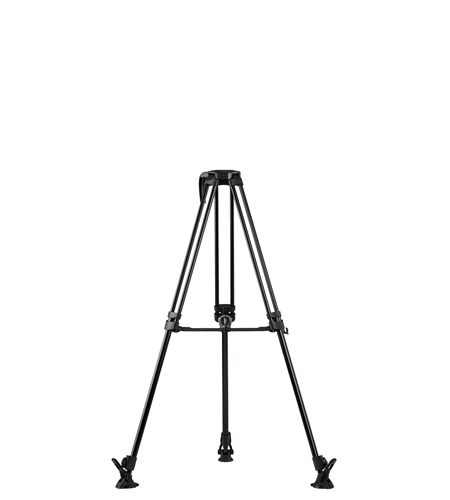

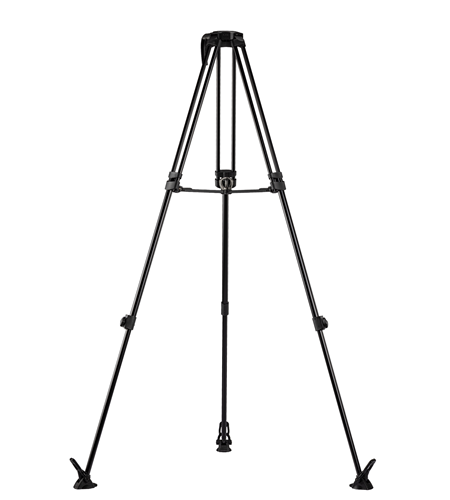

Simply move the center Deploy Ring up or down to simultaneously adjust the spreader and unlock the upper legs. This intuitive operation enables instant setups on fast-paced sets. |
|---|---|
 |
|---|
| Operation manual | |
|---|---|
| Q30B | FP-2B |
| Specification sheet | |
| Q30B + FP-2B | FP-2B |
| Service parts | |
| Q30B | FP-2B |
| Specifications | |
|---|---|
| Pipe material | Aluminum |
| Payload | 45kg / 99lbs |
| Upper Leg Lock | Quick Deploy |
| Lower Leg Lock | Screw Lock |
| Accessory attachments | 2 sets of 1/4" and 3/8" screw holes |
| Carrying handle | Available |
| Weight | 2.9kg / 6.4lbs |
| Height | 72 to 169.5cm / 28.3 to 66.7" |
| Head attachment | 75mm bowl |
| Section | 2-Stage |
