All-round tripod case RC-80

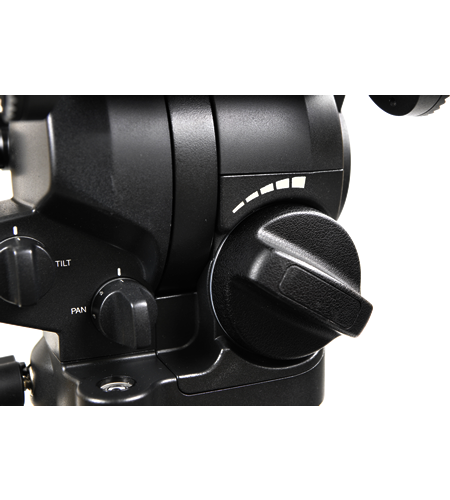

Counterbalance knob
LED bubble level
Pan and tilt drag control
1/4" and 3/8" spare screws
Upper lock knob
Long sliding plate
Related Items
All-round tripod case RC-80
Counterbalance knob
LED bubble level
Pan and tilt drag control
1/4" and 3/8" spare screws
Upper lock knob
Long sliding plate
| System components | |
|---|---|
| Head: RHP85 | Tripod: T103RB |
| Long sliding plate | Spreader: BR-6B |
| Large rubber feet: FP-6B | Case: RC-80 |
| Operation manual | |
|---|---|
| RHP85 | T103RB |
| BR-6B | FP-6B |
| Specification sheet | |
| RSP-850M | RHP85 |
| Sliding Plate L | T103RB |
| BR-6B | FP-6B |
| RC-80 | |
| Service parts | |
| RHP85 | T103RB |
| BR-6B | FP-6B |
| Specifications | |
|---|---|
| Counterbalance range | 9 to 20kg / 20.0 to 44.0lb (C.G.125mm) |
| Payload | 25kg / 55.0lb |
| Counterbalance | Continuous |
| Drag mode | 7STEP |
| Tilt angle | +90° / -70° |
| Weight | 11.6kg / 25.5lb |
| Height | 95.5 to 189.5cm / 37.5 to 74.5" |
| Ball diameter | 100mm |
| Section | 2STAGE |
