The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup. |
|---|---|
 |
Dual-head specification available for both 75mm bowl and flat base tripods. Mountable on sliders, skater dollies, and other equipment. |
 |
By removing the spacer from the bowl clamp, the length of the insertion thread is extended, offering more equipment options that can be attached to the head. |
 |
Easy and speedy height adjustments using a one flip lock per leg. |
 |
| System components | |
|---|---|
| Head: NH20 | Tripod: QL40C |
| Spreader: SP-1B | Case: RC-30 |
| Operation manual | |
|---|---|
| NH20 | QL40C |
| SP-1B | |
| Specification sheet | |

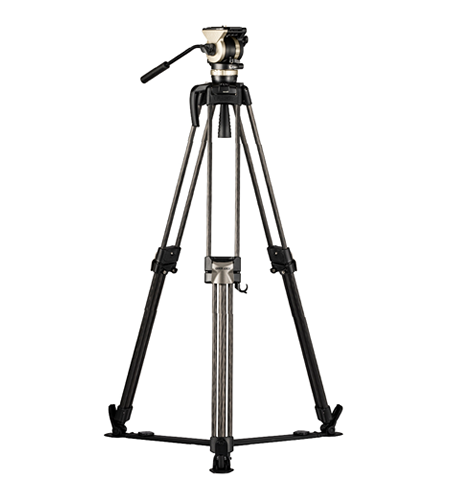

| NX-200QC | NH20 |
| QL40C | SP-1B |
| RC30 | |
| Service parts | |
| NH20 | QL40C |
| SP-1B | |
| Specifications | |
|---|---|
| Counterbalance Range | 0 to 2.5kg / 0 to 5.5lb(C.G.55mm) |
| Payload | 4kg / 8.8lb |
| Counterbalance | Free plus 5STEP |
| Drag mode | Free plus 3STEP |
| Drag system | Multilayered Metal Structure |
| Tilt angle | +90° to -70° |
| Temperature range | -40°C to +60°C / -40°F to +140°F |
| Bubble level | Illuminated |
| Camera plate | Sliding plate compatible |
| Compatible with Manfrotto and Sachtler heads | |
| Sliding range | +/-30mm / +/-1.2" |
| Long sliding plate | Optional |
| Head base | 75mm ball / Flat base |
| Plate attachment | 1/4" screw with video pin |
| Accessory attachment | Head: 1/4" and 3/8" screw holes Tripod: 3 sets of 1/4" and 3/8" screw holes |
| Spare screw | 1/4" and 3/8" screws |
| Weight | 4.8kg / 10.6lb |
| Height | 55 to 168cm / 21.7 to 66.1" |
| Head attachment | 75mm bowl |
| Pipe material | Carbon |
| Section | 2-Stage |
| NH20 Counterbalance chart |
|---|
 |
