Libec's unique continuous perfect counterbalance system enables the camera to perfectly balance at any tilt angle. |
|---|---|
 |
The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup. |
 |
Dual-head specification available for both 75mm bowl and flat base tripods. Mountable on sliders, skater dollies, and other equipment. |
 |
By removing the spacer from the bowl clamp, the length of the insertion thread is extended, offering more equipment options that can be attached to the head. |
 |
Easy and speedy height adjustments using a one flip lock per leg. |
 |
| System components | |
|---|---|

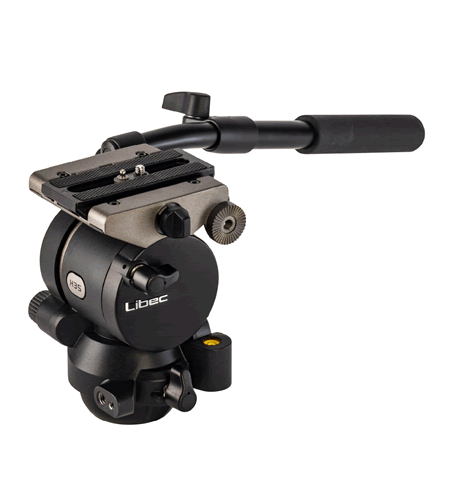

| Head: H35 | Tripod: QL40C |
| Spreader: BR-2B | Large rubber feet: FP-1B |
| Case: RC-30 | |
| Operation manual | |
|---|---|
| H35 | QL40C |
| BR-2B | FP-1B |
| Specification sheet | |

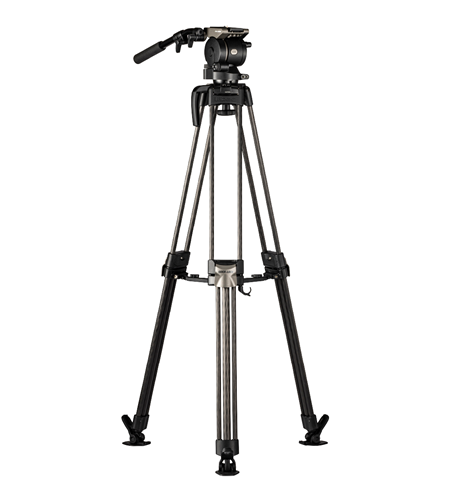

| HS-350MQC | H35 |
| QL40C | BR-2B |
| FP-1B | Long Plate S |
| RC-30 | |
| Service parts | |
| H35 | QL40C |
| BR-2B | FP-1B |
| Specifications | |
|---|---|
| Counterbalance range | 3 to 7.5kg / 6.6 to 16.5lb (C.G.100mm) |
| Payload | 8kg / 17.6lb |
| Counterbalance | Perfect Balance |
| Continuous Counterbalance with Illuminated Meter | |
| Drag mode | Free plus 3 steps |
| Drag system | Multilayered Metal Structure |
| Tilt angle | +90° to -70° |
| Temperature range | -40°C to +60°C / -40°F to +140°F |
| Bubble level | Illuminated |
| Camera plate | Sliding plate compatible |
| with Manfrotto and Sachtler heads | |
| Sliding range | +/-30mm / +/-1.2" |
| Long sliding plate | Included |
| Head base | 75mm ball / Flat base |
| Plate attachment | 1/4" screw with video pin |
| Accessory attachments | Head: 1/4" and 3/8" screw holes Tripod: 3 sets of 1/4" and 3/8" screw holes |
| Spare screw | 1/4" and 3/8" screws |
| Weight | 5.5kg / 12.1lb |
| Height | 79.5 to 167cm / 31.3 to 65.7" |
| Head attachment | 75mm bowl |
| Pipe material | Carbon |
| Section | 2-Stage |
| H35 Counterbalance chart |
|---|
*When the innerspring is set to maximum strength, the tilt angle is limited to +/-40 degrees. |
