Related Items
 |
La placa de la cámara se puede sujetar y desmontar con un solo toque, lo que favorece una configuración rápida y sencilla. |
|---|---|
 |
Especificación de cabezal-doble disponible para trípodes de base plana y de tazón de 75 mm. Se puede montar en deslizadores, plataformas de skate y otros equipos. |
 |
Al retirar el espaciador de la abrazadera del tazón, se extiende la longitud de la rosca de inserción, lo que ofrece más opciones de equipos que se pueden sujetar al cabezal. |
 |

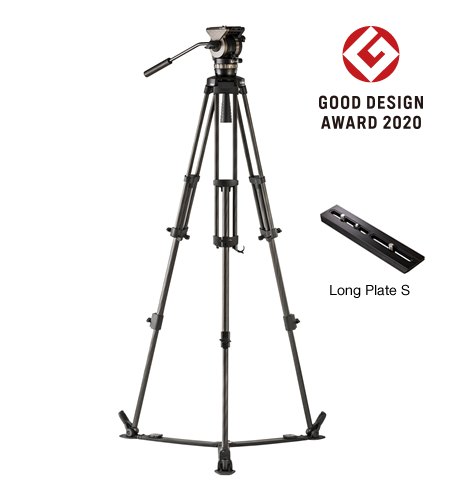

| System components | |
|---|---|
| Head:NH30 | Tripod: RT20C |
| Spreader: SP-1B | Case: RC-30 |
| accessory：Long Plate S | |
| Operation manual | |
|---|---|
| NH30 | RT20C |
| SP-1B | |
| Specification sheet | |
| NX-300C | NH30 |
| RT20C | SP-1B |
| Long Plate S | |
| Service parts | |
| NH30 | RT20C |
| SP-1B | |
| Specifications | |
|---|---|
| Counterbalance Range | 0 to 10kg / 0 to 22lb(C.G.55mm) |
| Payload | 10kg / 22lb |
| Counterbalance | Free plus 5STEP |
| Drag mode | Free plus 3STEP |
| Drag system | Multilayered Metal Structure |
| Tilt angle | +90° / -70° |
| Temperature range | -40°C to +60°C / -40°F to +140°F |
| Bubble level | Illuminated |
| Camera plate | Sliding plate compatible |
| Compatible with Manfrotto and Sachtler heads | |
| Sliding range | +/-30mm / 1.2" |
| Long sliding plate | Included |
| Head attachment | 75mm ball / Flat base |
| Plate attachment | 1/4" screw with video pin |
| Accessory attachment | 1/4" and 3/8" screws holes |
| Spare screw | 1/4" and 3/8" screws |
| Weight | 4.1kg / 9lb |
| Height | 53 to 168cm / 20.8 to 66.1" |
| Head attachment | 75mm bowl |
| Pipe material | Carbon |
| Section | 2-Stage |
| NH30 Counterbalance chart |
|---|
 |
