Libec's unique continuous perfect counterbalance system enables the camera to perfectly balance at any tilt angle. |
|---|---|
 |
The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup. |
| System components | |
|---|---|

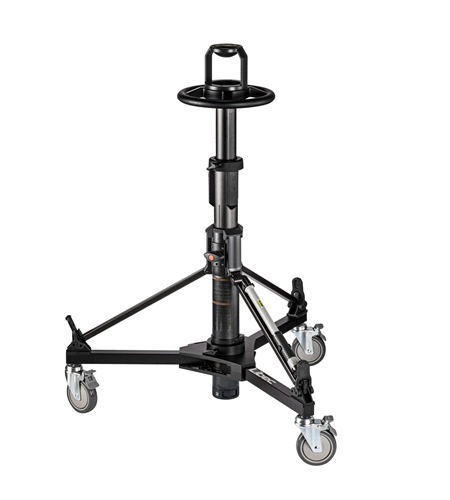

| Head: GH85 | Pedestal: P110B |
| Pan handle: PH-8B x2 | Long Plate L |
| Operation manual | |
|---|---|
| GH85 | P110B |
| Specification sheet | |

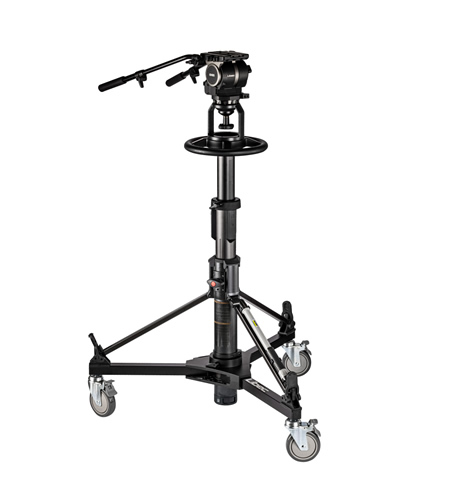

| GS-850PDB | GH85 |
| Service parts | |
| GH85 | P110 Column |
| DL-8RB | PH-8B |
| Specifications | |
|---|---|
| Counterbalance range | 9 to 20kg / 20 to 44lb (C.G.125mm) |
| Payload | 25kg / 55lb |
| Counterbalance | Perfect Balance |
| Continuous Counterbalance with Meter | |
| Drag mode | 7 steps |
| Tilt angle | +90° to -70° |
| Bubble level | Illuminated |
| Camera plate | Sliding plate |
| Sliding range | +/-55mm / +/-2.2" |
| Long sliding plate | Included |
| Head base | 100mm ball |
| Plate attachment | 3/8" screw x 2 |
| Accessory attachments | Head: 1/4" & 3/8" screw holes |
| Spare screw | 3/8" screw |
| Weight | 21kg / 46.2lb |
| Height | 100 to 175.5cm / 39.4 to 69.1" |
| Head attachment | 100mm bowl |
| Column | 2-Stage |
| GH85 Counterbalance chart |
|---|
 *When the innerspring is set to maximum strength, the tilt angle is limited to +/-40 degrees. |
